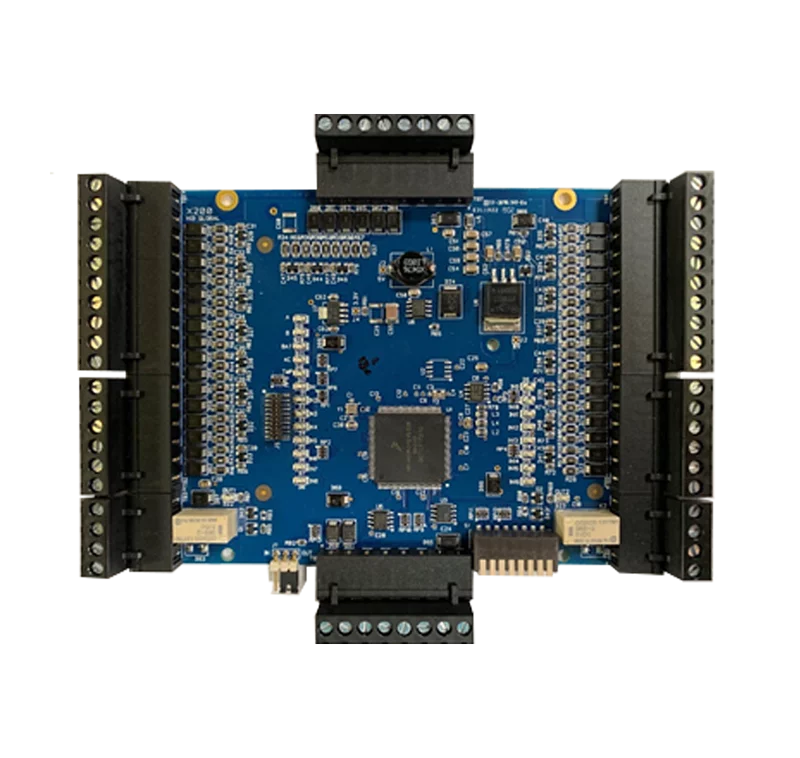

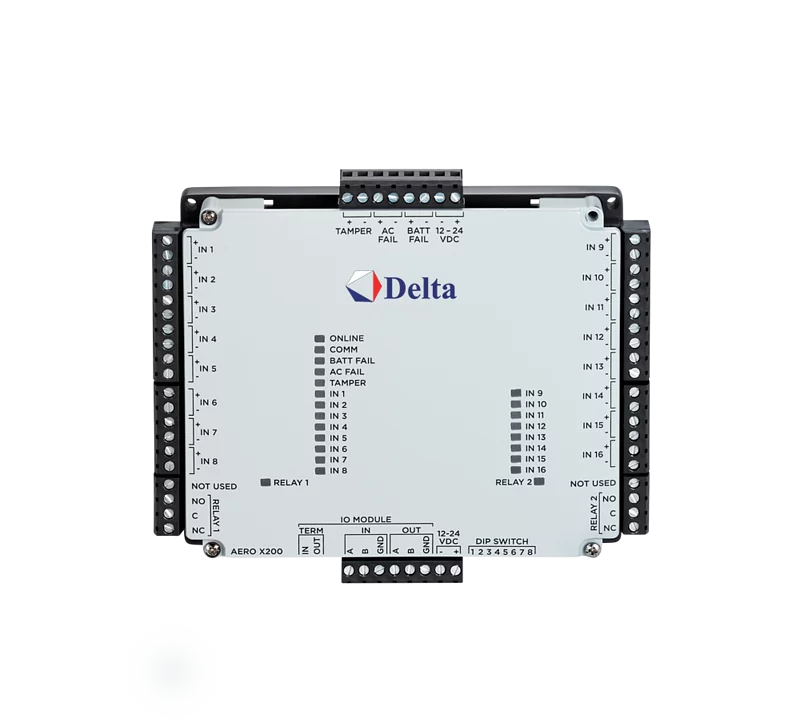

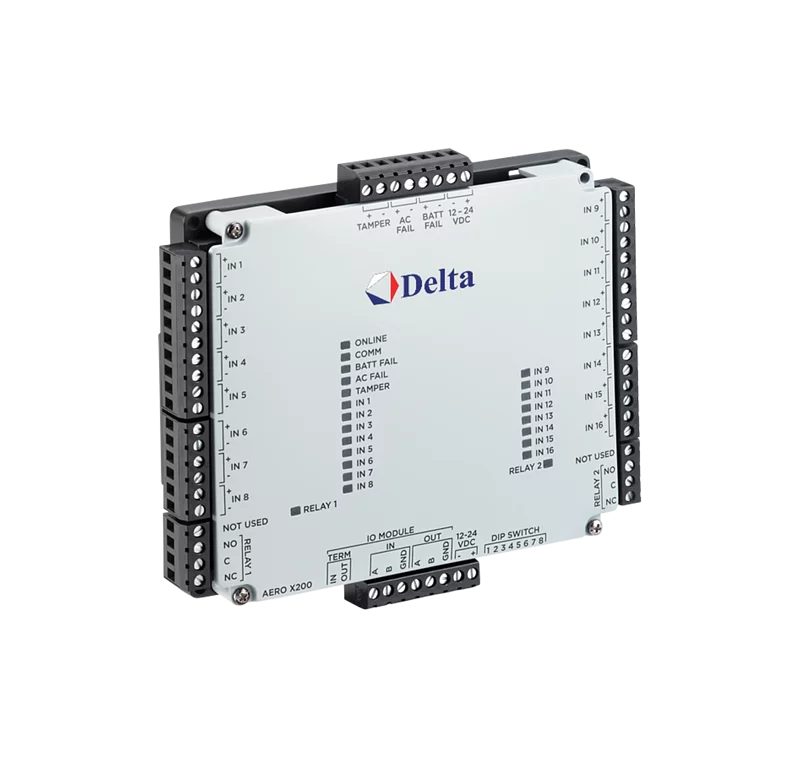

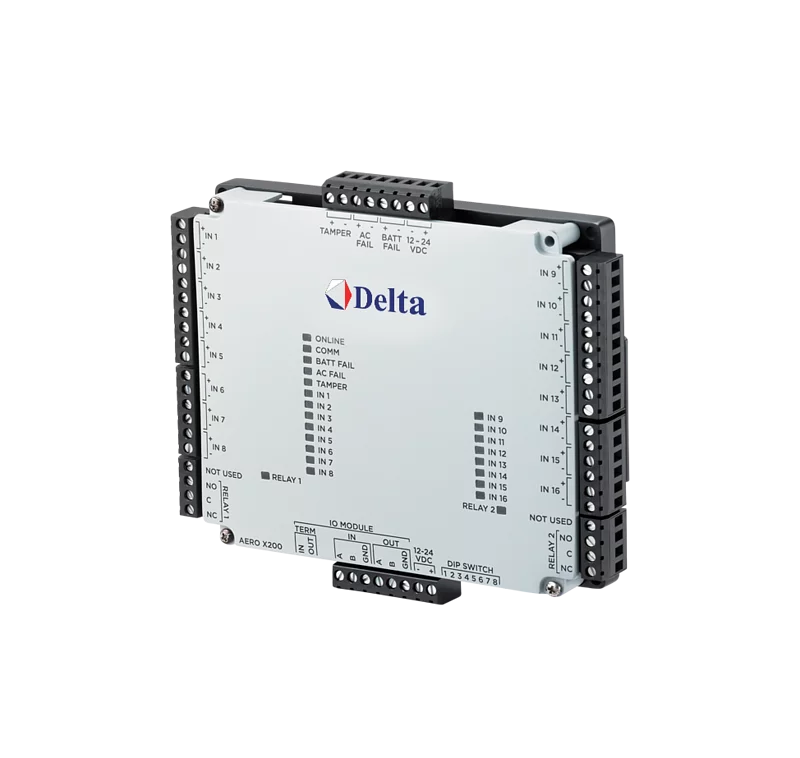

DAC-X200 Input Monitor Interface Module

DAC-X200 Input Monitor Interface Module


-Dimension: 164x140x26mm (6.46x 5.51x10.2")
-Weight: 326g
-Input Voltage: 12 to 24 VDC ± 10%
-Max. Input Current: 1.5A (340mA excluding readers and USB)
-Operating Temperature: 0°C to 70°C (32°F to 158°F)
-Relative Humidity: 5% to 85%


Product Features
  • Custom RulesProcessing – Use DAC-X200 in conjunction with custom rules engine on DAC-X1100to create elaborate rules for handling input states
  • Supervised /Unsupervised Inputs – Supervised inputs can support custom A-to-D conversion
  • VertX V200Replacement – Form / fit replacement
  • IO Module Encryption– Enhance security between intelligent controller and IO modules with AESencryption
  • Crypto Chips –Protect against malicious attacks to keep keys and passwords safe
  • Threat Level –Define up to 7 different threat levels that are used to instantaneously adjustuser access during lockdowns and lockouts
  • Open Architecture –Work with a variety of software partners over time without any re-investment inhardware
  • Based on MercuryTechnology – Built on a tried and tested platform, operating in the most demandingaccess control enterprises for 25+ years
  • Easy to UnderstandLED Status Lights – Status lights representing power, heartbeat, online/offlinestatus, reader status, input status, input status and relay status
  • Mounting –Physically mount to DIN rails using accessory (sold separately)
Product Specifications
  • Intelligent Controller Communication
    • 2-wires RS-485, 2400 to 115K BPS, asynchronous
  • Inputs
    • 19 supervised / unsupervised
    • Standard EOL : 1k/1kΩ1%. ¼ watt
  • Outputs
    • 2 Relays
    •  Form-C with dry contacts, non-latching
  • Relay Contact Rating: 2A@30Vdc resistive



    • Certification: FCC Part15 Subpart B, CE, BSMI, IC, AS, NZS,TCVN, KCC
    • Safety: UL-294, IEC 62368-1, CB Scheme
    • Hazardous Substances: RoHs (2011/65/EU & 2015/863), EU REACH (1907*2006), California Proposition 65
  • HS Code: 9030.33.3
  • ECCN: EAR99
