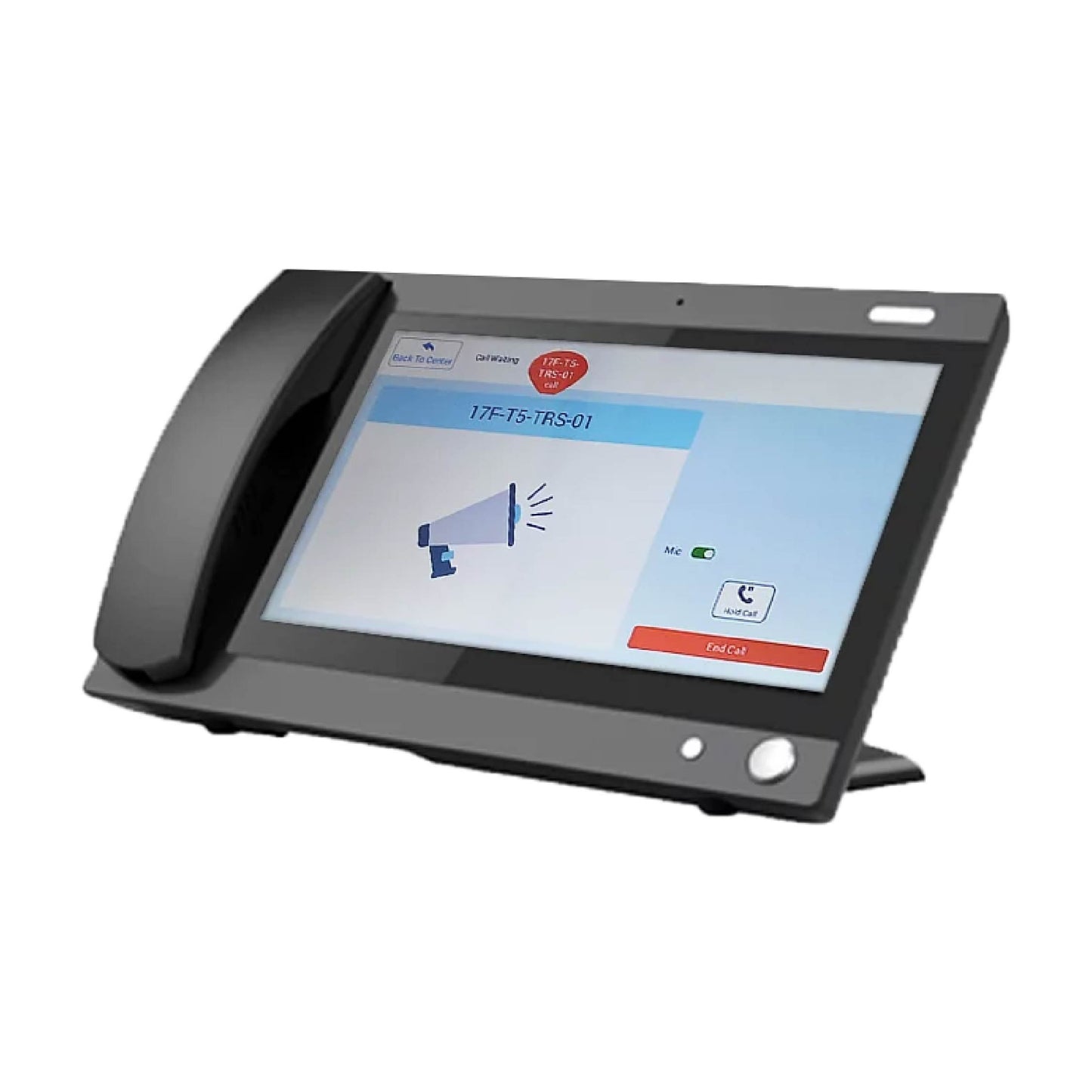

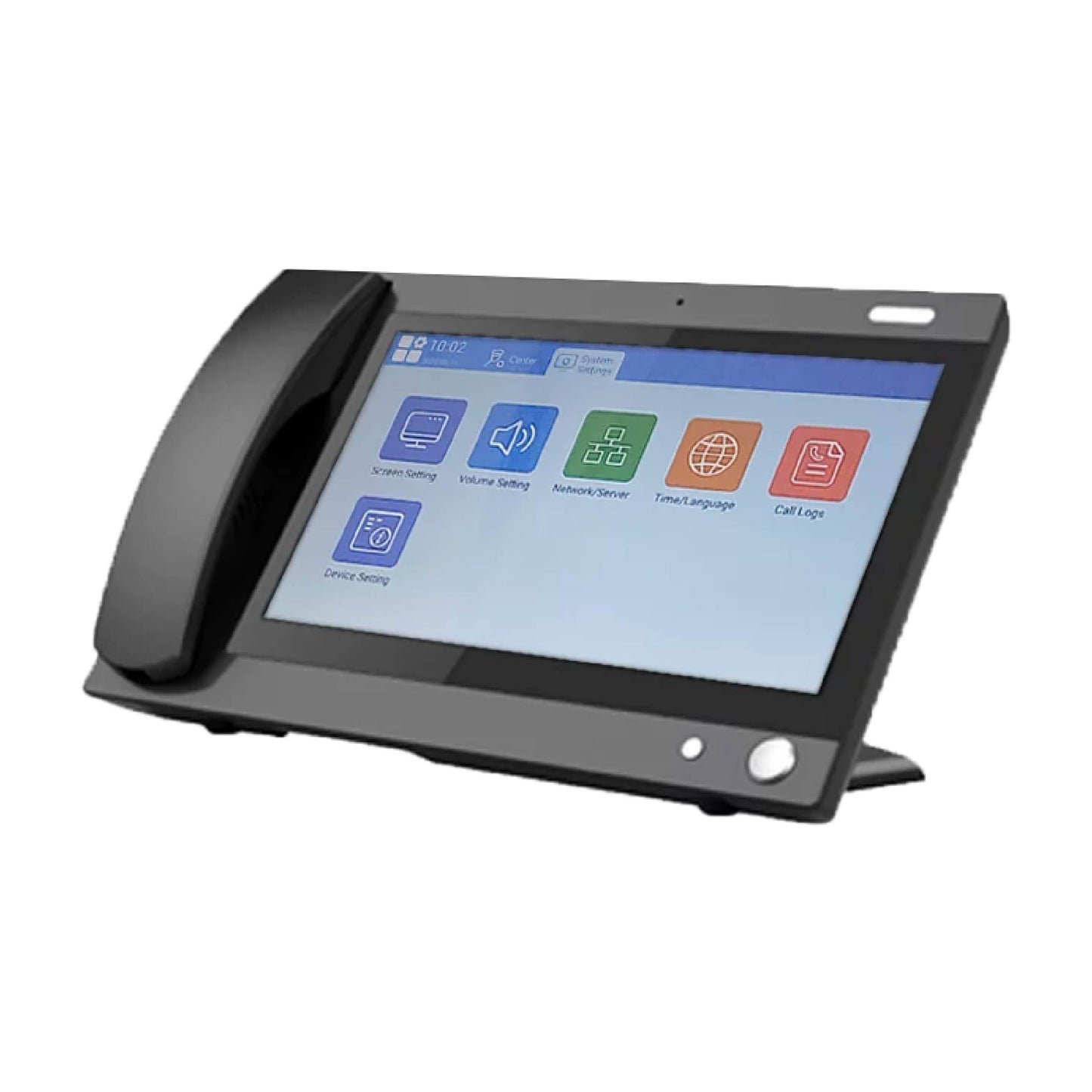

DIC-TRS-001 Intercom Host Console

DIC-TRS-001 Intercom Host Console


Outline Dimension: 303*195*30mm
Network Connector: Standard RJ45 input
Communication Rate: 100Mbps
Operation System: Linux 2.6
Operating Temperature: -10°C to +55°C
Operating Humidity: 20% to 93%
Power Consumption: ≤6W
Input Power: DC12V

Products features
  • Master station of Intercom system
  • Communicate with emergency intercoms within the intercom system
  • Up to 1000 slave intercom can be connected without a controller
  • Dry Contact interface (Connect different devices for additional functions)
  • Power Over Ethernet (POE)
  • Public Announcement, Alarm Management, Emergency Call Management, Access Control
  • Equipped with LCD touch screen, high resolution camera,
  • PnP feature, easy installation and setup


General Specifications
  • Communication Protocol: TCP, UDP, RTP, ARP, IGMP, HTTP, SIP
  • Screen Resolution: 800*480
  • Camera: 720P
  • Video Code: H.264
  • Audio Code: G.711
