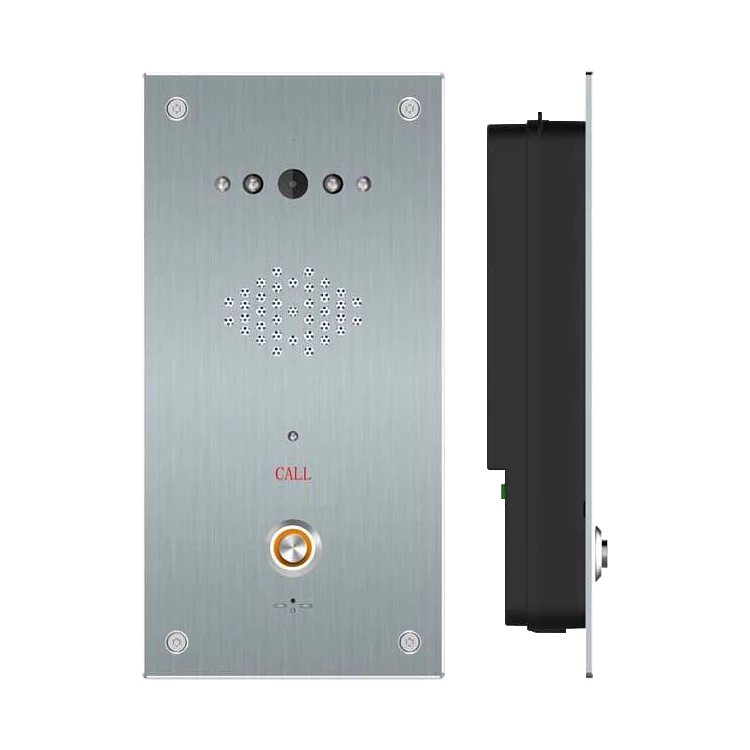

DIC-TRS-003 Emergency Intercom with video

DIC-TRS-003 Emergency Intercom with video


-Outline Dimension (W*H*D):
Back Box: 90mm*185mm*48mm
Overall size: 85mm*180mm*45mm
-Network Connector: Standard RJ45
-TCP/IP Connection Speed: 100Mbps
-Operation System: Linux 2.6
-Operating Temperature: -20°C to +55°C
-Operating Humidity: 20%-93%
-Power Consumption: ≤6W
-Power Input: DC12V


Products features
  • Slave Intercom
  • Hand-free communication with master intercoms
  • Emergency Call
  • Dry Contact interface (Connect different devices for additional functions)
  • Power Over Ethernet (POE)
  • Easy to use, direct button to call master intercom
  • Facilitate the rescue of person in case of emergency
  • Equipped with call button, speaker and microphone
  • External audio or speaker connection ready
  • Support WEB setting interface , support online upgrade


General Specifications
  • Flush or surface Mounting
  • Aluminum Finishing
  • Communication Protocol: TCP, UDP, RTP, ARP, IGMP, HTTP, SIP
  • Camera: 720P
  • Video Code: H.264
  • Audio Code: G.711
