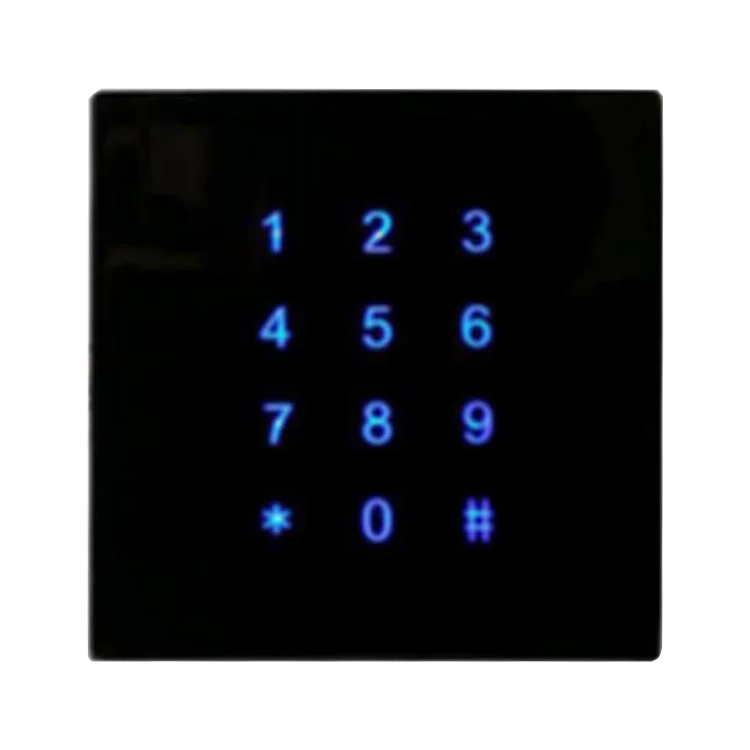

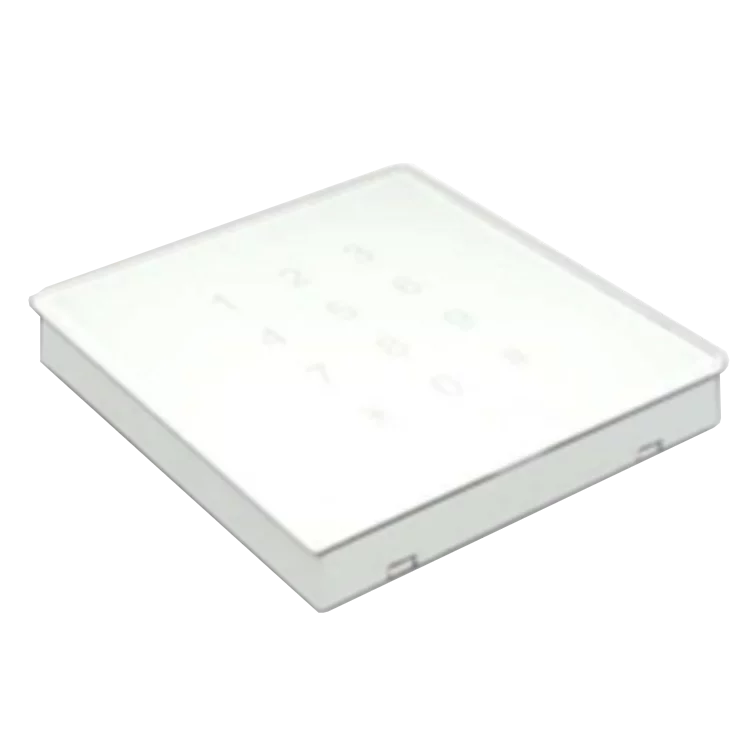

DAC-MTCR-003 Mifare Reader with keypads (Mifare, Mifare Plus, Desfire, Felica)
DAC-MTCR-003 Mifare Reader with keypads (Mifare, Mifare Plus, Desfire, Felica)
定價
$0.00
定價
售價
$0.00
單價
/
每
-Outline Dimension: 8.6*8.6*1.1cm(Flush Mount) / 8.6*8.6*2.2cm (Surface Mount)
-Operating Power: 12VDC, 150mA
-Operating Temperature: -10°C to 50°C
-Operating Humidity: 10%-90%
-Available Color: Black, White
-Surface material: Glass
Product features
- Support 3 x 4 Keypads with backlight
- Built-in Buzzer
- Support ISO14443 Type A,B,C Smart Card
- Up to 5cm Reading Range
Product Specifications
- Operate Frequency
- ISO14443 Type A, 13.56MHz
- Card Type
- Mifare Series, Mifare Plus, Desfire, Felica and etc.
- Reading Range
- up to 5cm
- Response Time
- 0.2s
- Communication
- Wigand 34/64 bits / Wiegand 8 bit for keypads
- LED and Buzzer Control
