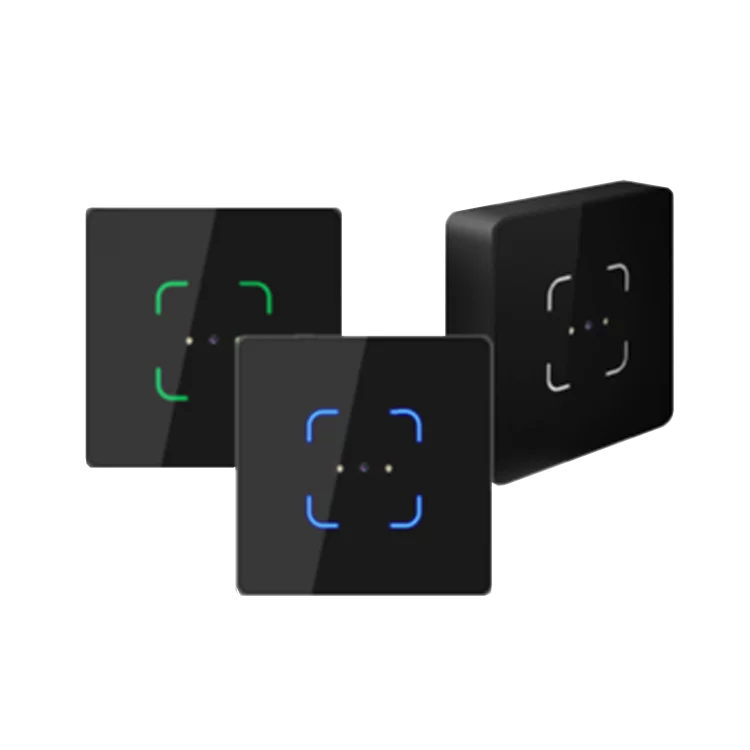

DAC-QRCR-002 Technologies QR Code and Bluetooth Reader
DAC-QRCR-002 Technologies QR Code and Bluetooth Reader
存貨單位 (SKU):DAC-QRCR-002
-Outline Dimension: 86*86*16mm
-Operating Power: 8-15VDC, 100mA
-Operating Temperature: -10°C to 60°C
-Storage Temperature: -60°C to 80°C
-Operating Humidity: >95% relative humidity ( non-condensing)
-Housing Material: Polycarbonate
-Available Color: Black
Product features
- QR Code scanner with compensation backlight, 5cm to 16cm read range
- Multi-technologies with 13.56MHz of contactless smart card support
- Color LED for visual notification, reader buzzer for audio notification
- Wiegand Output for 3rd party platform integration
- Bluetooth 4.0
Product Specifications
- Card Technology
- 13.56MHz CSN of Mifare Classic, SONY Felica CSN, Mifare Plus, DESfire EV1
- Reader Output
- Wiegand Output and RS-232 Output
- QR Code
- min resolution: 5mil, 1mil=0.0254mm
- Resolution: 640 x 480
- Scanning Angle: ±60° for left & right, ±40° for front & back, 360° rotation
- Bluetooth4.0
- Indicator
- Visual Indicator: Bicolor LED
- Audio Indicator: Built-in buzzer
- Reader Cable
- Pigtail 8 wires
