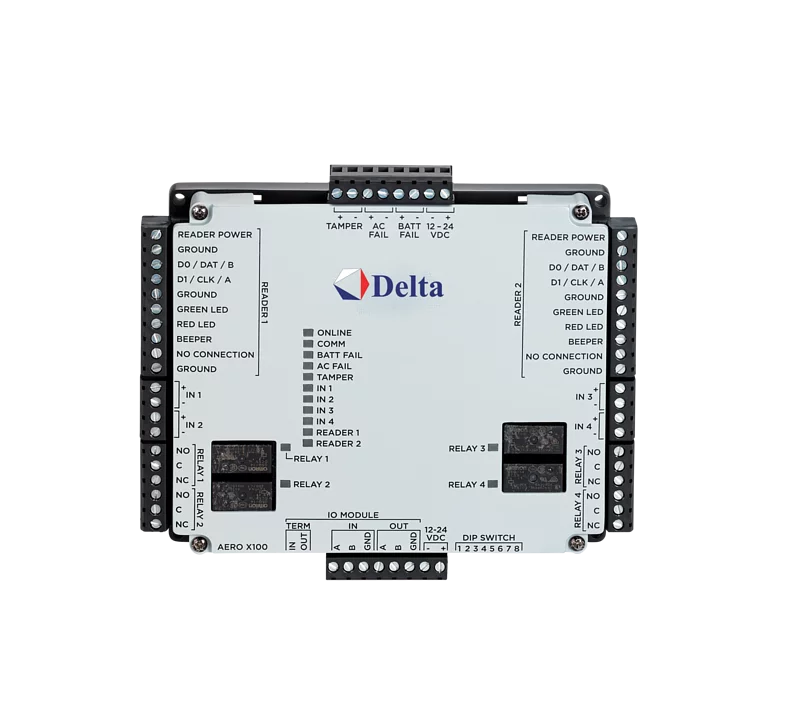

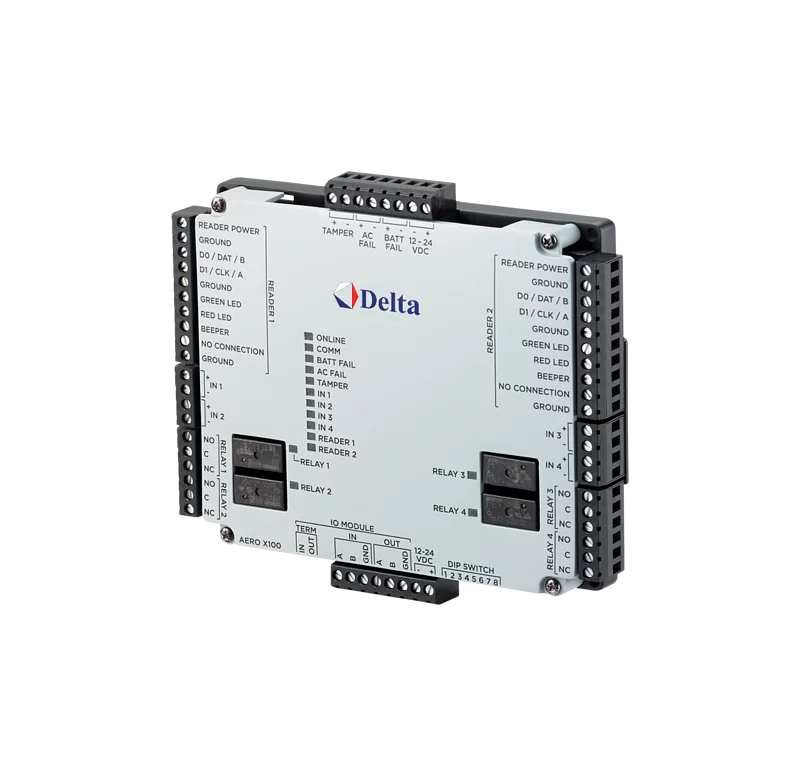

DAC-X100 Door / Reader Interface Module

DAC-X100 Door / Reader Interface Module

DAC-X100

-Dimension: 164x140x26mm (6.46x 5.51x10.2")
-Weight: 342g
-Input Voltage: 12 to 24 VDC ± 10%
-Max. Input Current: 1.5A (340mA excluding readers and USB)
-Operating Temperature: 0°C to 70°C (32°F to 158°F)
-Relative Humidity: 5% to 85%



Product Features
  • OSDP Reader Support -- Increase security and functionality with secure channel and bi-directional communications
  • IO module Encryption -- Enhance security between intelligent controller and IO modules with AES encryption
  • Crypto Chips -- Protect against malicious attacks to keep keys and passwords safe
  • Threat Level -- Define up to 7 different threat levels that are used to instantaneously adjust user access during lockdowns and lockouts
  • High Amp Relays -- Ensure controller protection from power hungry locks and enables wider choice of engress hardware
  • Open Architecture --  Work with a variety of software partners over time without any re-investment in hardware
  • Based on Mercury Technology -- Built on tired and tested platform, operating in the most demanding access control enterprises for 25+ years
  • East to Understand LED status Lights -- Status lights representing power, heartbeat, online/offline status, reader status, input status and relay status
  • Mounting -- Physically mount on DIN rails using accessory (sold separately)

Product Specifications
  • Intelligent Controller Communication
    • 2-wires RS-485, 2400 to 115K BPS, asynchronous
  • Inputs
    • 7 supervised / unsupervised
    • Standard EOL : 1k/1kΩ1%. ¼ watt
  • Outputs
    • 4Relays
    •  Form-C with dry contacts
  • Normally Open Contact Rating: 5A@30 Vdc resistive
  • Normally Closed Contact Rating: 3A @30 Vdc resistive
  • Reader Power: 12VDC ± 10% regulated, 500mA maximum each reader
  • Data Input Power: TTL compatible or 2-wire RS-485
  • OSDP Mode: 9600to 230,00 bps, asynchronous, half-duplex, max cable 2000 ft (609.6m)
  • LED Output (Wiegand)
    • Open Collector, 12Vdc open circuit maximum, 40mAsink maximum
  • Beeper Output (Wiegand)
    • Open Collector, 12Vdc open circuit maximum, 40mA sink maximum



          Certification

    • Certification: FCC Part15 Subpart , CE, BSMI, IC, AS, NZS,TCVN, KCC
    • Safety: UL-294, IEC 62368-1, CB Scheme
    • Hazardous Substances: RoHs (2011/65/EU & 2015/863), EU REACH (1907*2006), California Proposition 65
  • HS Code: 8537.10.9
  • ECCN: EAR99
