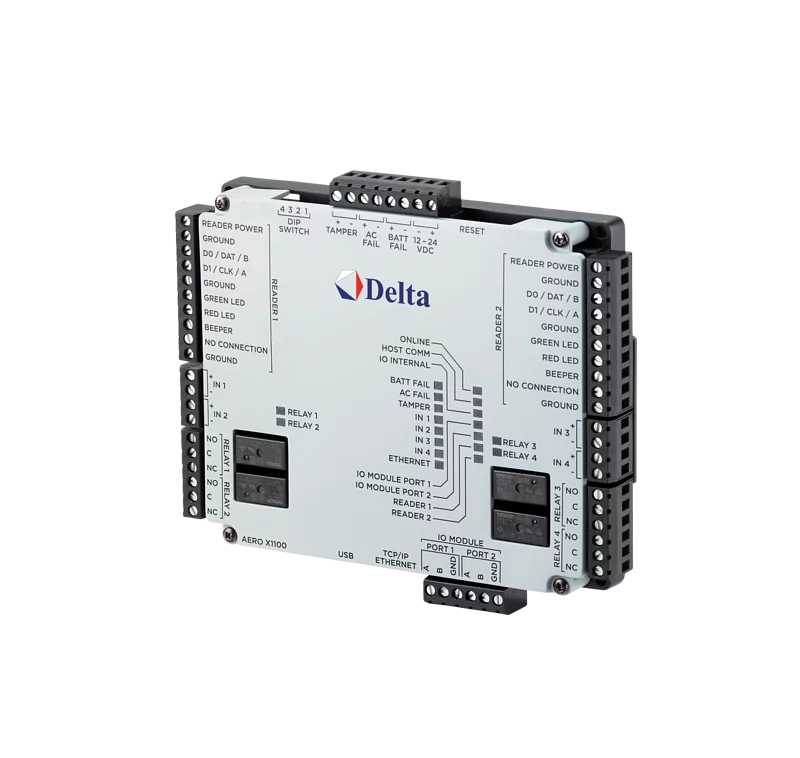

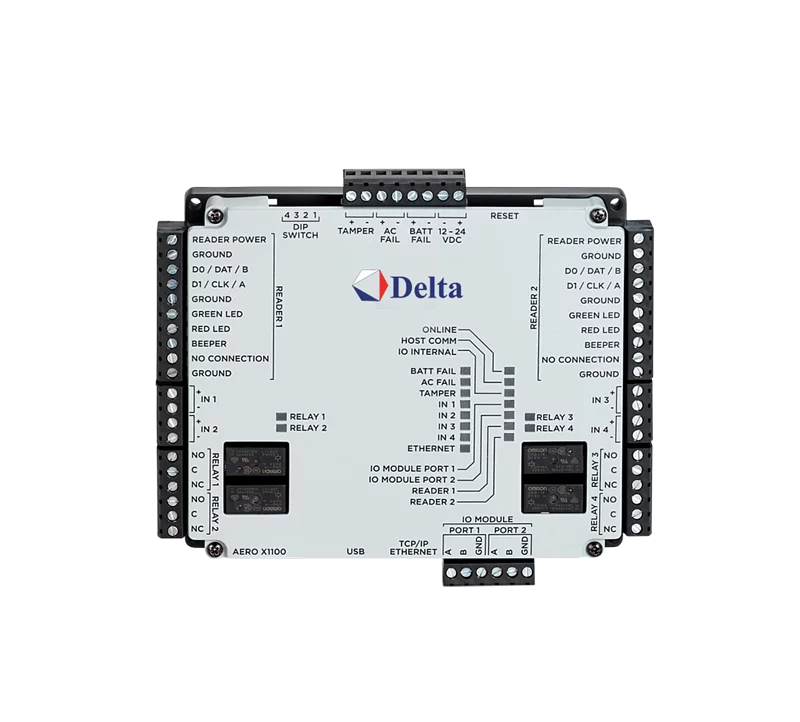

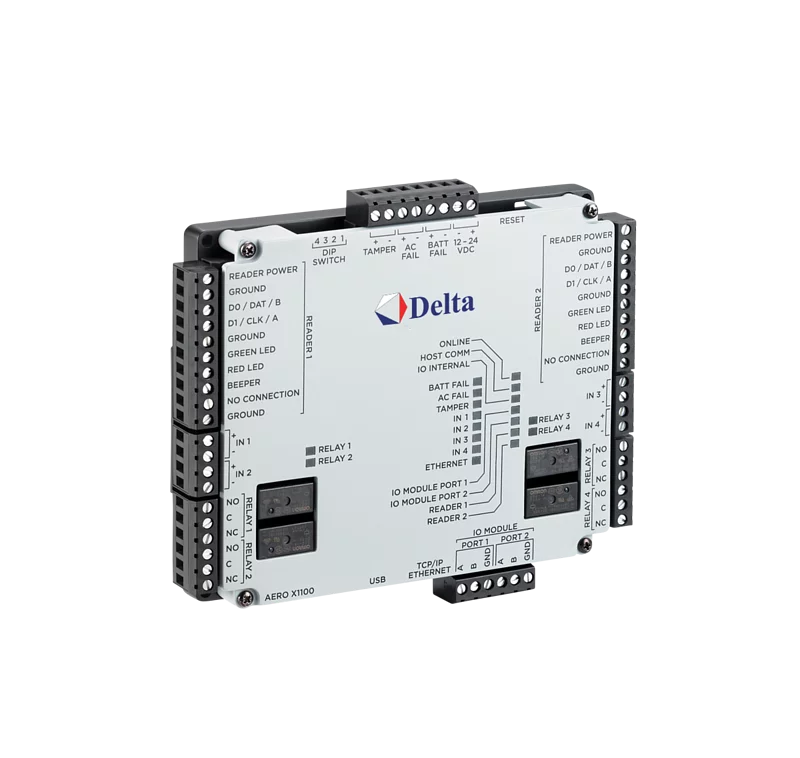

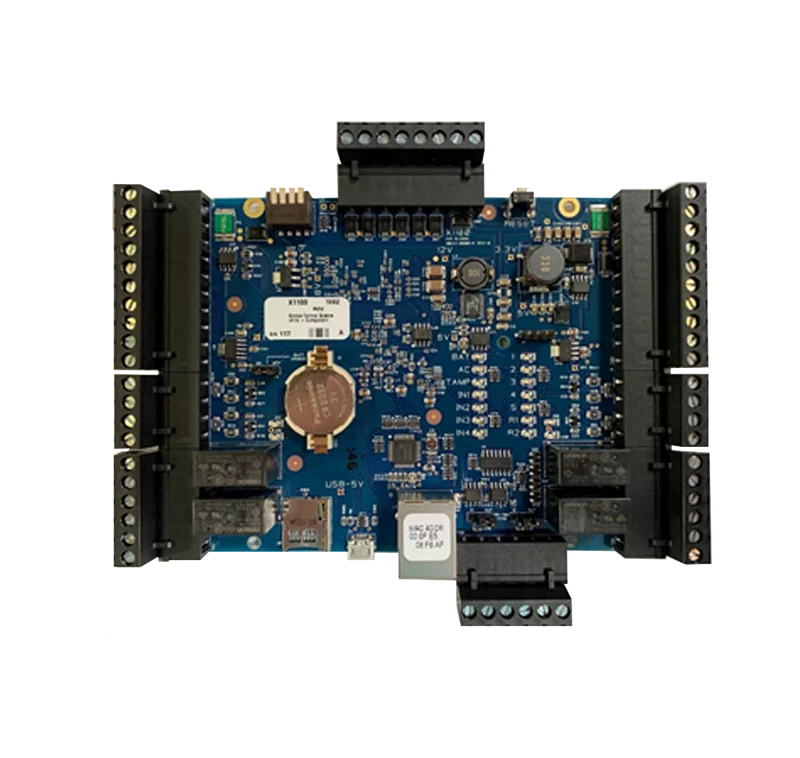

DAC-X1100 Intelligent Controller

-Dimension: 164x140x26mm (6.46x 5.51x10.2")
-Weight: 352g
-Input Voltage: 12 to 24 VDC ± 10%
-Max. Input Current: 51.9A (550mA excluding reader and USB)
-Operating Temperature: 0°C to 70°C (32°F to 158°F)
-Relative Humidity: 5% to 85%

Product Features

• OSDP Reader Support –Increase security and functionality with secure channel and bi-directionalcommunications
• Robust NetworkSecurity – Supports mutual authentication using TLS 1.2 while running in aFIPS140-2 approved operating environment on the intelligent controller
• IO Module Encryption– Enhance security between intelligent controller and IO modules with AESencryption
• Crypto Chips –Protect against malicious attacks to keep keys and passwords safe
• Threat Levels –Define up to 7 different threat levels that are used to instantaneously adjustuser access during lockdowns and lockouts
• High Amp Relays –Ensure controller protection from power hungry locks and enables wider choiceof egress hardware
• Open Architecture –Work with a variety of software partners over time without any re-investment inhardware
• Based on MercuryTechnology – Built on a tried and tested platform, operating in the most demandingaccess control enterprises for 25+ years
• End-to-End Security –TLS 1.2, AES-256, OSDP Secure Channel and 4-state supervised inputs ensures noweak technology link in the chain of security
• VertX Compatibility –Installs in the same footprint as VertX and communicates with V100, V200 andV300 IO Modules

Product Specifications

• Credential Capacity: 250,000
• Credential Number Size: Up to 64 bits with 15-digits PIN MAX
• Transaction Buffer: 50,000
• Access levels: 32 per credentials (per reader schedule); plus custom credential override
• On-Board Access Point Control: Up to  2 access points with on-board IO
• On-Board Reader Support: Up to 4 (OSDP multi-drop) or 2 (Wiegand) with on-board IO
• Maximum Access Point: 64 (using X100 or V100 IO modules)
• Maximum Reader: 64 (ODSP or Wiegand, regardless of IO module configuration)
• Maximum Inputs: 615 (using X200 or V200 IO Modules)
• Maximum Outputs: 388 (using X200 or V200 IO Modules)
• Number of IO Modules Buses: 2 (each deliciated to either Delta or Delta VertX IO modules)
• Maximum X series IO Modules: 32, each IO Modules bus can support up to 32 X series modules
• Maximum VertX IO Modules: 32, each IO Modules bus can support up to16 VertX modules
• Micro USB Port: 5Vdc, 500mA maximum (USB 2.0)
• Memory and Clock Battery Backup: 3Volt Lithium, type CR2032
• MicroSD Card
• Format: microSD or microSDHC
• 2GB to 8 GB (RFU)
• Ethernet communication: 10BaseT / 100Base-TX
• IO Module communication: 2-wire RS-485, 2400 to 115K BPS, asynchronous
• Inputs: 7 supervised / unsupervised, standard EOL: 1k/1kΩ1%. ¼ watt
• Outputs: 4 Relays, Form-C with dry contacts
• Normally Open Contact Rating: 5A@30 Vdc resistive
• Normally Closed Contact Rating: 3A @30 Vdc resistive
• Reader Power: 12Vdc± 10% regulated, 500mA maximum each reader
• Data Input Power: TTL compatible or 2-wire RS-485
• OSDP Mode: 9,600 to 230,400bps, asynchronous , half duplex, max. cable 2000ft (609.6m)
• LED Output (Wiegand): Open Collector, 12Vdc open circuit maximum, 40mA sink maximum
• Beeper Output (Wiegand): Open Collector, 12Vdc open circuit maximum, 40mA sink maximum
• SIN Railing Mounting:
• Purchase accessory separately
• Manufacturer: Phoenix Contact,
• Description: USA 10 Series Rail Adapter, Mfg Part No. 1201578

           Certifications

• • Certification: FCC Part15 Subpart B, CE, BSMI, IC, AS, NZS, TCVN, KCC
  • Safety: UL-294, IEC 62368-2. CB Scheme
  • Hazardous Substances: RoHs (2011/65/EI & 2015/863), EU REACH (1907.2006), California Proposition 65
  • ECCN: EAR99
